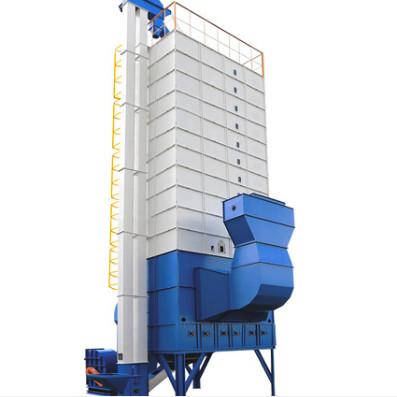

Grain Drying Equipment 5H-40
Description:
we are supported by technology and market-oriented, focusing on the
research and development and manufacturing of drying equipment. we
have a complete product range and comprehensive technology.
Into the material pit → enter the primary selection hoist →
vibration primary selection machine → enter the flow temporary
storage bucket elevator → flow meter → enters the drying elevator →
2 high-net fast dewatering dryers → enter the temporary storage
bucket scraper → enter Homogenization Temporary Storage Bucket→Out
Homogenization Bucket Scraper→Into Drying Hoist→5 Dryers→Into
Temporary Storage Bucket Scraper→Into Homogenization Temporary
Storage Bucket→Out Homogenization Bucket Scraper→Into Drying Lift
Machine → 5 dryers → outflow temporary storage bucket elevator →
flow meter → to the barn
● Up-and-down design without screw conveyor lowered grain crack
rate. trouble-free and saving power.
● A large drying area, thin multi-channel drying layer, makes
drying efficient and uniform.
● The automatic drying monitoring system, temperature, and moisture
dynamic display, fault reminder, simple operation, make the
operation management more convenient.
● Equipped with an imported grain moisture tester, real-time
accurate detection of the current moisture value of the grain.
● Heating by multifunctional hot air furnace, uses rice husk,
straw, wood, and other fuels, makes low operating costs;
● Strongly remove impurity, dryer with strongly removal function
efficiently dry and remove impurity;
● The inner heat exhaust air duct is automatically cleaned by
airflow, grain dust is discharged with the grain, not stored in the
air duct.
● According to the level of moisture and the customers drying
needs, set multistage drying temperature automatically, to achieve
uniform, energy saving, fast drying.
● The most durable axis and blades with reinforcement in the
industry combined with the control by frequency conversion type
allocating axis.
Parameter:
| Model | 5H-40 | 5H-50 |
| Form | | Batch cycle | Batch cycle |
| Capacity(T) | Paddy(t) | ≥40 | ≥50 |
| Machine Dimension | LXWXH(mm) | 6285*4755*15430 | 6370x4730x19155 |
| Power | Voltage/Frequency | 220V/380V 50/60Hz | 220V/380V 50/60Hz |
| Total power(kw) | 20.04 | 29.2 |
| Performance | Feeding Time(min) | 45 | 50 |
| Discharging Time(min) | 38 | 40 |
| Moisture Reducing Time(％/h) | 0.5-1.5 | 0.5-1.5 |
| Burner | Model | Direct hot air, smooth double-stage fire burning |
| Ignition Method | Autoignition By High Pressure |
| Burning Volume(kg/h) | 18-40 | 30-60 |
| Burning Volume(m³/h) | 20-55 | 25-55 |
| Husk Burning Furnace | Model | Indirect Hot Air (Automatic Temperature Control) |
| Ignition Method | Manual Ignition |
| Indirect Furnace Husk Usage Amount(kg/h) | 40-100 | 60-200 |
